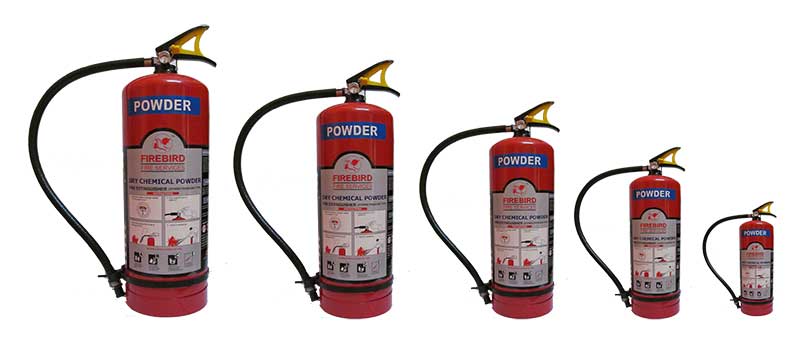

Suitable for Class 'A', 'B' and 'C' Fires involving Wood, Paper, Burning Liquids, Oil Petrol, Paints Electricity and Gases Etc
| IS Specification | IS 15683 : 2006 |
| Capacity | 1 Kg. / 2 Kg. / 4 Kg. / 6 Kg. / 9 Kg. |
| Construction | Manufactured out E.D.D. Quality Seamless Bottom Welded |
| Charge | Dry Chemical Powder Mono Ammonium Phosphate Base. |
| Anti corrosive Treatment | Internally - Lead Tin Coating by electrolytic process. Externally - Lead Tin Coating with Fire Red Paint. |
| Accessories | Wall mounting brackets. |
| Operation | Pull out Safety Pin, Detach hose from the bracket and aim at the base of fire while Holding. |
| Maintenance | The Fire Extinguisher must be maintained as per IS : 2190 For satisfactory performance. Easy to use. |
PERFORMANCE DATA |
|||||
MODEL |
1 |
2 |
4 |
6 |
9 |
Capacity |
1 Kg |
2 Kg |
4 Kg |
6 Kg |
9 Kg |
Fire Rating |
1A:8B |
1A:13B |
2A:21B |
2A:34B |
3A:55B |
Average discharge time |
9.0 sec |
14.0 sec |
18.0 sec |
21.0 sec |
23.0 sec |
Jet Range |
2 mt. |
2 mt. |
4 mt. |
4 mt. |
8 mt. |
Height without base |
325 mm |
390 mm |
500 mm |
530 mm |
600 mm |
Diameter (Approx) |
86 ± 10 mm |
108 mm |
140 mrn |
150 mm |
180 mm |
Filled weight (Approx) |
2 Kg. |
3.4 Kg. |
6.7 Kg. |
9 Kg. |
13.18 Kg. |
Empty weight (Approx) |
1 Kg. |
1.4 Kg. |
2.7 Kg. |
3 Kg. |
4.18 Kg. |
Operating temperature |
-30°C to 55°C |
||||
Working Pressure at 20° C |
15 bar |
15 bar |
15 bar |
15 bar |
15 bar |
Maximum Service Pressure |
17 bar |
17 bar |
17 bar |
17 bar |
17 bar |
Test Pressure |
35 bar |
35 bar |
35 bar |
35 bar |
35 bar |
Approval |
BIS |
BIS |
BIS |
BIS |
BIS |
|
Hydro Pressure Test : 30 bar Working Pressure : Not exceed 15 bar Bursting Pressure : 45 bar |
Body : Mild Steel (EDD Quality) Valve : Brass forged Hose : Pre Braided |
